- It is equipped with a "dual circuit" that determines whether the installed battery is 18V or 14.4V and controls the tool to use with the optimal current and voltage.
- This is a compact impact wrench with a total length of 143 mm.
- Equipped with a C-spring that can temporarily hold the socket in place, socket replacement can be done smoothly.
- For final tightening of normal bolts up to M16, temporary tightening of high strength bolts up to M16 (only when using 18V), etc.
Specifications in detail
Impact: 3-step switching
Chuck: 12.7mm socket, C spring (retainer ring) pin type
Maximum tightening torque (N・m): 280
No-load speed (min(-1)): 0 to 2500
Insertion angle (mm): 12.7
No-load speed (min(-1)): 0 to 1500
No-load RPM (min(-1)): 0 to 1000
Number of hits (min(-1)): 0 to 3600
Number of hits (min(-1)): 0 to 2900
Number of hits (min(-1)): 0 to 1900
Battery pack capacity (Ah): 5.0
Included battery pack: EZ9L54
Tightening capacity: Bolts (M16 x 25 mm, plate thickness 10 mm, high strength bolts) approx. 350 pieces / Bolts (M12 x 25 mm, plate thickness 10 mm, high strength bolts) approx. 470 pieces

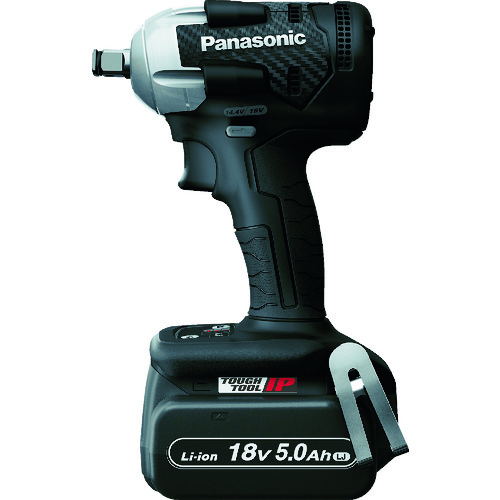

PANASONIC EZ75A8LJ2G-B
