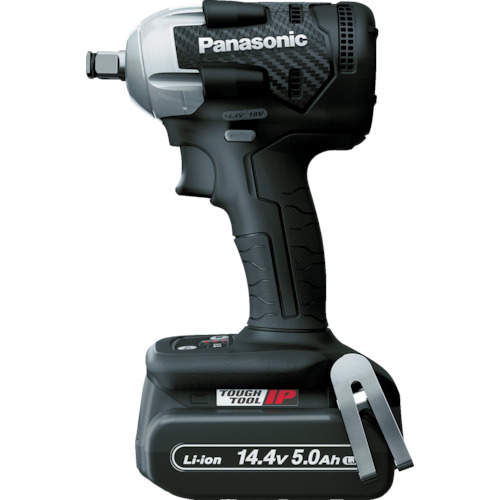

- This is a compact impact wrench with a total length of 143 mm.
- Equipped with a C-spring that can temporarily hold the socket in place, socket replacement can be done smoothly.
- For tightening standard bolts up to M16.
Specifications in detail
Impact: 3-step switching
Chuck: 12.7mm socket, C spring (retainer ring) pin type
Maximum tightening torque (N・m): 230
No-load speed (min(-1)): 0 to 2300
No-load speed (min(-1)): 0 to 1500
No-load RPM (min(-1)): 0 to 1000
Number of hits (min(-1)): 0 to 3400
Number of hits (min(-1)): 0 to 2900
Number of hits (min(-1)): 0 to 1900
Battery pack capacity (Ah): 5.0
Included battery pack: EZ9L48
Tightening capacity: Bolts (M16 x 25 mm, plate thickness 10 mm, high strength bolts) - / Bolts (M12 x 25 mm, plate thickness 10 mm, high strength bolts) approx. 320 pieces
Socket drive size (mm): 12.7
PANASONIC EZ75A8LJ2F-B
