Features
- The judgment lamp indicates whether the work is OK/NOK (NG) by color.
- The tightening status of the screws can be visually checked.
- One unit supports both push start and lever start.
- Can be set according to the worker and work process
- Color identification with judgment lamp
- I want to work easily and without stress
- When the clutch is engaged and the work is completed, the green light comes on.
- When working with the clutch disengaged, the red light comes on.
- Choose the starting method
- The lever switch can be removed when pushed.
Applications
- For tightening small screws.
Specifications in detail
Chuck: One-touch bit locking system Applicable bits (6.35mm hexagonal shank)
Start system: Push start/lever start (selectable)
Output: DC30V (supplied from power adapter (sold separately))
A power adapter (EYSZP001) is required for use.
Torque setting range: Approx. 0.1 to 1.0Nm
Output torque (N・m): 0.1 to 1.0
Compatible screws (mm) Small screws: M3 to M5
Body dimensions (mm): 271
Power supply (V): AC100 to 120
No-load rotation speed (min(-1)): 1200
Total length (mm): 271

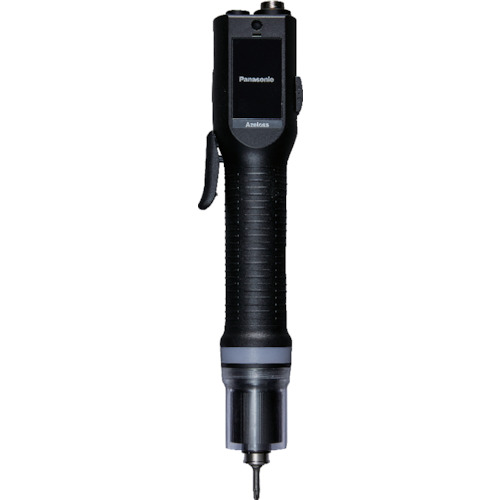

PANASONIC EYSDA112XD
