- The clutch has 21 different settings, allowing precise adjustment to suit the application and screw size.
- Clutch operation is measured with high precision using an optical sensor (photointerrupter) with no mechanical contacts.
- Equipped with an automatic power-off function, the power is automatically cut off before the battery voltage drops significantly, reducing the risk of the clutch not working.
- Tightening of small screws.
Specifications in detail
Fastening capacity: Small screws M2.5 to M5 (Mating material: iron)
Clutch operating torque: 21-step switching (torque accuracy ±10%)
Equipped with an auto-stop function that stops the motor as soon as the clutch is engaged
Chuck: One-touch bit lock type (step dimensions 9mm, 11.5mm, 13mm (9mm requires bit piece sold separately))
Support function: clutch fixing cover, LED light
Dimensions: Length 276 x Width 46mm (straight), Length 217 x Height 134 x Width 46mm (folded)
No-load speed (min-1) High speed: 600
No-load speed (min(-1)) Low speed: 200
Maximum tightening torque (N・m) high speed: 1.5
Maximum tightening torque (N・m) low speed: 3.5

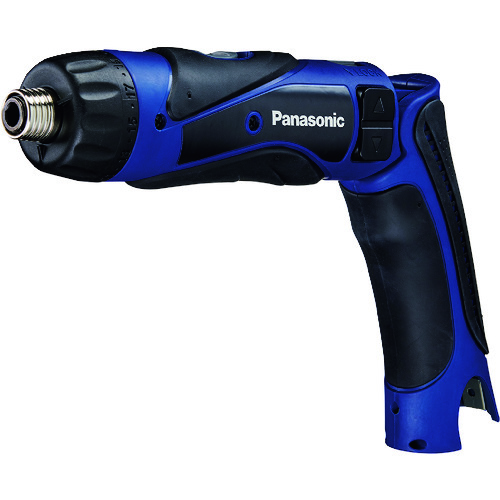

PANASONIC EYSDA1N
