- The tightening strength can be set by hand, eliminating over-tightening of bolts and screws.
- The automatic power shutoff function and constant impact force function ensure stable tightening force even when the battery is low.
- Reduces costs through longer life.
- For assembling large machinery and equipment.
- For the maintenance industry.
- For assembling the stand.
- For installing equipment.
Specifications in detail
Tightening strength adjustment: 6 levels + F mode
Recommended work: M10 (high strength bolts), M12 (normal to high strength bolts), M14 (normal bolts)
Dimensions: Length 172 x Height 250 x Width 59mm
Maximum tightening torque (N・m): 185
No-load speed (min(-1)): 0 to 2300
Number of hits (min(-1)): 0 to 2900
Insertion angle (mm): 12.7
Power supply (V): 14.4
Capacity(Ah):4.0
Number of hits (times/min): 0 to 2900
Battery pack capacity (Ah): 4.0
Socket drive size (mm): 12.7

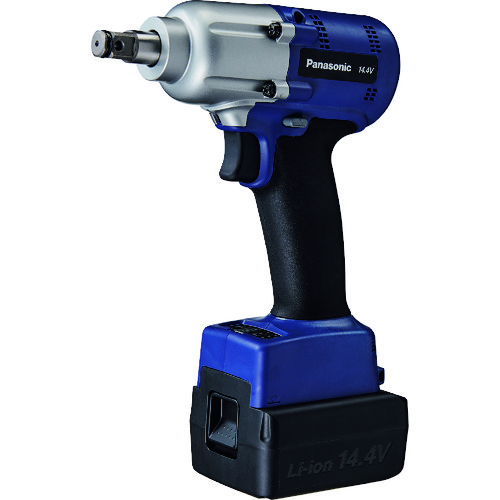

PANASONIC EYSMA1CS
