- The tightening strength can be adjusted by hand, preventing over-tightening of the bolts.
- The automatic power-off function automatically shuts off the power before the battery voltage drops significantly.
- The compact head makes it easy to tighten/loosen bolts even in tight spaces.
- Prevents over-tightening when assembling large machinery and equipment.
- Improves the efficiency of mold and jig replacement work.
- Improves safety in work sites with many cords.
- Also recommended for the following applications: maintenance workshops, rack assembly, equipment installation, etc.
- Recommended work: For M6 (high strength bolts), M8 (normal to high strength bolts), and M10 (normal bolts).
Specifications in detail
Maximum tightening torque (F mode, 3 seconds tightening): Approx. 80N・m (M12 bolt)
Clamping force setting steps: 6 steps + F (clamping force adjustment release mode)
Functions: constant impact force function, automatic power off function, battery level indicator (3 levels)
Supported functions: Long switch, tightening completion lamp, LED light
Maximum tightening torque (N・m): 80
No-load speed (min(-1)): 0 to 2300
Number of hits (min(-1)): 0 to 3500
Insertion angle (mm): 9.5
Voltage(V):14.4
Socket insertion size (mm): 9.5

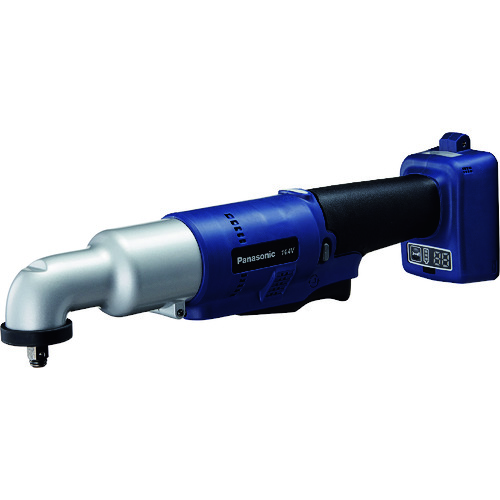

PANASONIC EYSME1C
