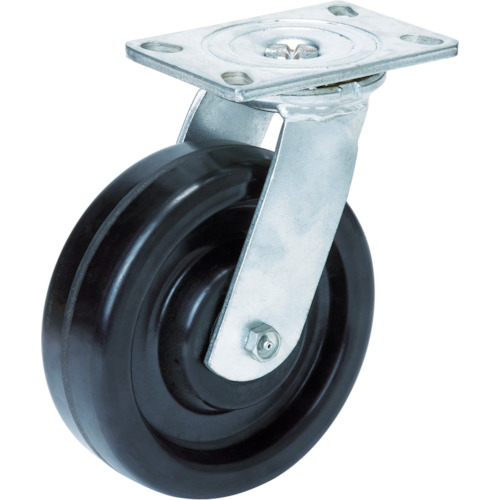

- It is a phenolic resin car with wavy fibers.
- The metal swivel parts are resistant to high loads and impacts, and rotate smoothly for a long period of time.
- Machine factories, food factories, warehouses, machine tools, computer office machines, medical equipment, etc.
Specifications in detail
Plate Type
Free-standing
Wheel diameter D(mm): 203
Type: Free-standing
Allowable load (daN): 735
Allowable load (kgf): 750
Wheel width(mm):64
Mounting height H(mm): 257
Mounting seat A(mm): 160
Mounting base B(mm): 114
Mounting pitch X(mm): 125-133
Mounting pitch Y(mm): 62-85
Mounting hole diameter P(mm): 14
OH H14PK-200
