| Mã đặt hàng | 175800.0100 | |
| Dải đo | ±45° | |
| Độ phân giải | mm/m | 0.02 |
| Độ chính xác | <2‘ | |
| Kích cỡ | mm | 100x30x75 |
| Khối lượng | kg | 0.5 |

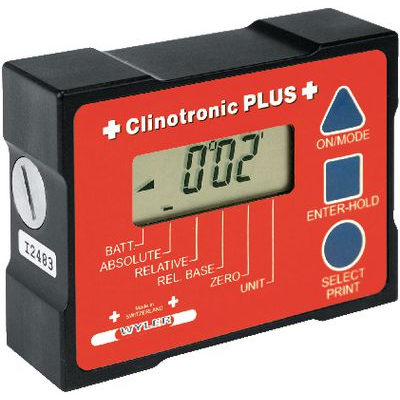

175800 - Clinometer WYLER
In hard anodised aluminium housing with 4 precise machined measuring bases. Sensor cell for improved performance in diffiult environmental conditions. Meets the strict EEC standards (imperviousness to electromagnetic forces).
Features:
Simple zero point calibration
Measurement displayed in degrees / minutes / seconds / decimal degrees and mm/m
Data output RS-485 / USB
Features software:
The CLINOTRONIC PLUS unit is supplied with an USB connecting cable and the „LabEXCEL Clino“
evaluation software. The software enables to display the measured values. The measurement results can be transferred to an EXCEL fie for further processing.
Package contents:
Delivered in transport packaging incl. Software „LabEXCEL Clino“ and signal cable USB 1.8 m.
Appropriate batteries:
1 pieces 155050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
