Thông tin sản phẩm
Air pressure used: 0.6MPa
Minimum plate pressure (mm): 1.5 (maximum chamfering amount at 1.5mm 0.5C)
Minimum corner radius (mm): 3R
Minimum processing diameter (mm): 6.8
Minimum chamfering depth (mm): 6
No-load rotation speed (min (-1st power)): 28000
Air consumption ((M3)/min): 0.15
Chamfering capacity : Mild steel 0~1C/Stainless steel 0~0.5C
Chamfer angle (°): 45
Hose attachment port: High coupler 20PM
Overall length (mm): 86
No-load rotation speed (rpm): 28000

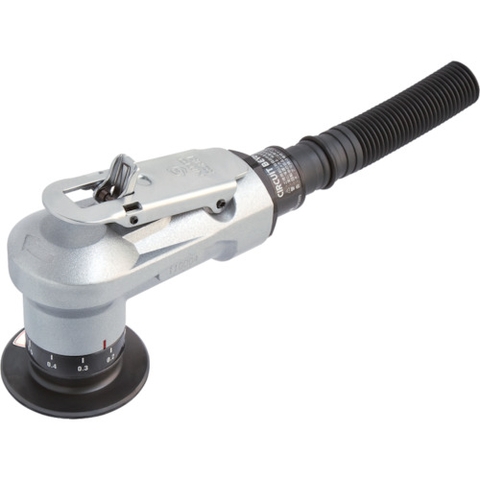

Nitto Kohki CB-01
