Features
- The power will turn off within 0.1 seconds after touching metal.
- Malfunctions caused by moisture in concrete have been drastically reduced.
Applications
- Ideal for on-site work such as construction work.
Specifications in detail
AC100V
indoor type
Comes with a "drum stopper" that stops the cable and drum at the same time
Plug: Pop-in plug
Comes with a "drum stopper" that stops the rotation of the cable and drum at the same time
Breaker sensitivity 15A/15mA
Wire type: VCT
Wire specification length (m): 30 Wire specification
thickness ((mm2)): 2.0 Wire
specification number of cores (C): 3
Rated current (A): 5
Limit current (A): 15
Outlet specification rating: 15A/100V Earthed
outlet specification shape: (three-phase 1)
Number of outlet specifications: 4
Power lamp: Yes
Ground terminal: Yes
2P/3P compatible plug: Yes
Earth leakage circuit breaker specification: Earth leakage, overload, short circuit protection, combined
Rated voltage (V): 100
Size (mm)
Overload protection
Input (V)
Earth leakage protection

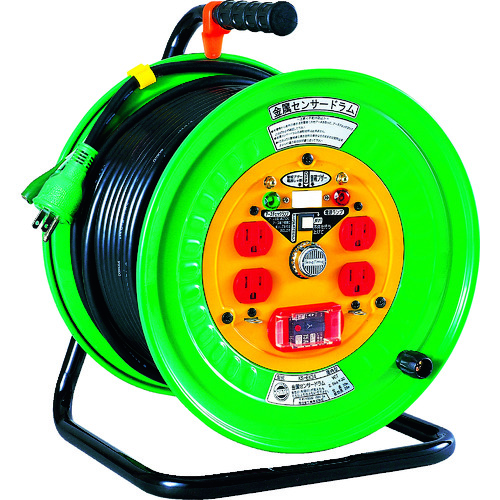

NICHIDO KS-EK34
