Features
- The lighting pattern can be switched between HIGH and LOW.
- This is a European ATEX certified model.
- This is an IECEX compliant model.

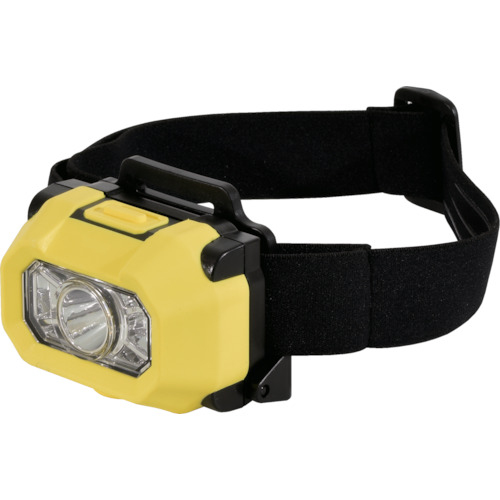

- Explosion-proof LED headlight.
Applications
- For use in explosive and flammable locations.
- Oil refineries, petrochemical plants, gas chemical plants, explosives plants, and various other chemical plants.
Specifications in detail
Explosion-proof certification IEC: Ex ia IIC T4 Ga/ATEX: II 1G Ex ia IIC T4 Ga IP67/UL: Class I Div 1&2 Grp ABCD/UL: Class II Div 1&2 Grp EFG/UL: Class III temp code T4
Continuous lighting time: 22 hours (strong)/27 hours (weak)
Beam angle: 40 degrees
Color rendering: Ra76
Power supply: 3 AAA alkaline batteries included
Protection class: IP67
Waterproof structure
Brightness (lm): 180 (strong)/90 (weak)
Color: Yellow
Width (mm): 83
Depth (mm): 46
Height (mm): 60
Power supply (V): 3 AAA alkaline batteries included
Maximum lighting time (h): 22 (strong)/27 (weak)
NICHIDO DS-14
