Features
- A wide variety of cord reels are available in different lengths, protective functions, and wire types.
Note
- If used while rolled up, there is a risk of burning.
- Do not use outdoors in rainy weather.
Specifications in detail
AC100V
Maximum current: 15A
Comes with a "drum stopper" that stops the rotation of the cable and drum at the same time
Plug: Pop-in plug
Breaker sensitivity 15A/15mA
Wire type: VCT
Wire specification length (m): 30
Wire specification thickness ((mm2)): 2.0
Wire specification number of
cores (C): 3 Rated current (A): 5
Maximum current (A): 15
Outlet specification rating: 15A/100V (with earth)
Outlet specification shape: (three-phase 1)
Number of outlet specifications: 4
Temperature sensor: Automatic reset type
Power lamp: Yes
Ground terminal: Yes
2P/3P compatible plug: Yes Earth
leakage circuit breaker specification: Combined leakage current, overload and short circuit protection
Rated voltage (V): 100

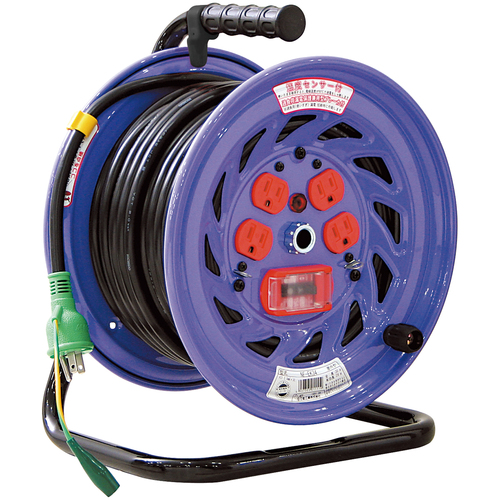

NICHIDO NF-EK34
