Features

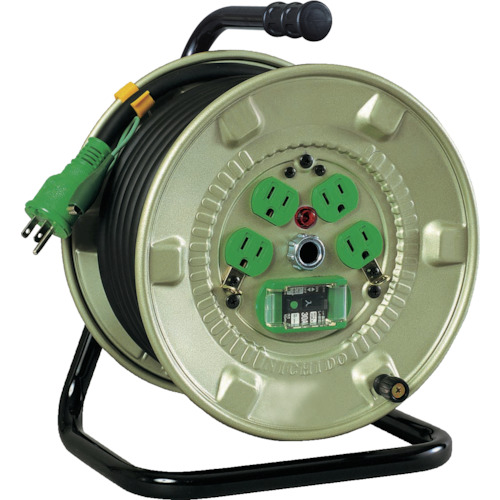

- This is an electrician's drum with a leakage current protection breaker.
- This is a pop-in plug (compatible with 2-core and 3-core).
Note
- The breaker is for leakage current protection only.
- If used while rolled up, there is a risk of burning.
- Do not use outdoors in rainy weather.
Specifications in detail
AC100V
earthed
power supply with lamp
Plug: Pop-in plug
Comes with a "drum stopper" that stops the rotation of the cable and drum at the same time
Leakage breaker sensitivity 15mA
Wire type: VCT
Wire specification length (m): 30
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 3
Rated current (A): 5
Limit current (A): 15
Outlet specification rating: 15A・100V (with earth)
Outlet specification shape: (three-phase 1)
Number of outlet specifications: 4
Power lamp: ○
Ground terminal: ○
2P・3P compatible plug: ○
Leakage breaker specification: Dedicated for leakage current ground fault protection Rated
voltage (V): 100
NICHIDO NNP-EB34
