Features
- This is an electrician's drum with a leakage current protection breaker.
- This is a pop-in plug (compatible with 2-core and 3-core).
Note
- The breaker is for leakage current protection only.
- If used while rolled up, there is a risk of burning.
- Do not use outdoors in rainy weather.
Specifications in detail
AC100V
with earth,
power lamp,
plug: pop-in
plug, with "drum stopper" that stops the rotation of the cable and drum at the same time,
leakage current breaker sensitivity 15mA,
wire type: VCT
, wire specification length (m): 20,
wire specification thickness ((mm2)): 2.0,
wire specification number of cores (C): 3
, rated current (A): 5,
limit current (A): 15,
outlet specification rating: 15A, 100V (with earth),
outlet specification shape: (three-phase 1),
outlet specification number: 4
, power lamp: ○
, ground terminal: ○,
2P/3P compatible plug: ○,
leakage current breaker specification: for earth leakage protection only,
rated voltage (V): 100

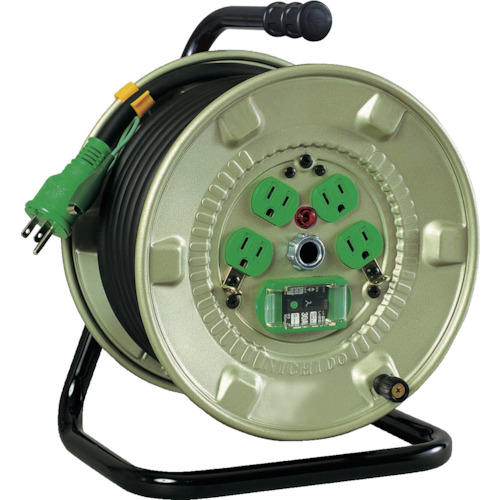

NICHIDO NNP-EB24
