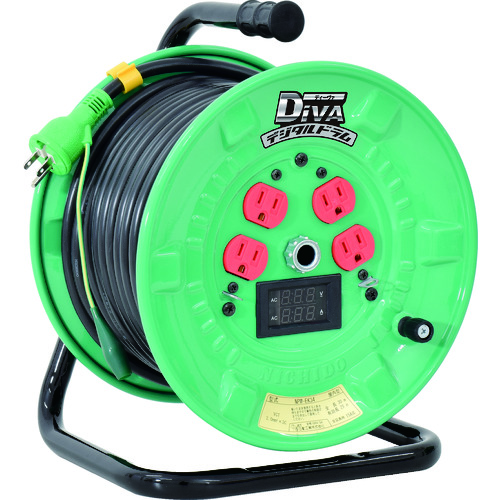

Features
- This is an electrician's drum with a digital meter that allows you to see the voltage and current at a glance.
- Voltage drop and overuse can be checked on the digital display.
Note
- If used while rolled up, there is a risk of burning.
- Do not use outdoors in rainy weather.
Specifications in detail
Plug type: Pop-in plug
With earth
Power lamp
With "drum stopper" that stops the rotation of the cable and drum at the same time
Breaker sensitivity 15A/15mA
Wire type: VCT soft cable
Wire specification length (m): 30
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 3
Rated current (A): 5
Limit current (A): 15
Outlet specification rating: 15A/100V Earthed
Outlet specification shape: (three-phase 1)
Number of outlet specifications: 4
Power lamp: ○
Ground terminal: ○
2P/3P compatible plug: ○
Earth leakage breaker specification: Earth leakage, overload, short circuit protection
Rated voltage (V): 100
Body dimensions (mm) Depth: 220
Body dimensions (mm) Width: 275
Power supply (V): 100
Body dimensions (mm) Height: 341
NICHIDO NPDM-EK34
