Features
- The drum body is placed near the power source, and the end with the outlet is extended to the desired location (reverse power distribution type).
- Ideal for working at height and in tight spaces.
- Ideal for working at height and in tight spaces.
Note
- The breaker is for leakage current protection only.
- If used while rolled up, there is a risk of burning.
- Do not use outdoors in rainy weather.
Specifications in detail
AC100V
Indoor type
Comes with a "drum stopper" that stops the rotation of the cable and drum at the same time
Maximum current: 15A
Earth leakage breaker sensitivity 15mA
Cord tip: Triple outlet
Wire type: VCT
Wire specification length (m): 30 (3 + 27)
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 3
Rated current (A): 5
Maximum current (A): 15
Outlet specification rating: 15A / 125V Earthed
outlet specification shape: (three-phase 1)
Number of outlets: 3 + 2
Temperature sensor: Automatic reset type
Power lamp: Yes
Ground terminal: Yes
2P / 3P compatible plug: Yes
Earth leakage breaker specification: Dedicated for earth leakage protection
Rated voltage (V): 100
Plug type: Pokkin plug (2-core / 3-core compatible plug)

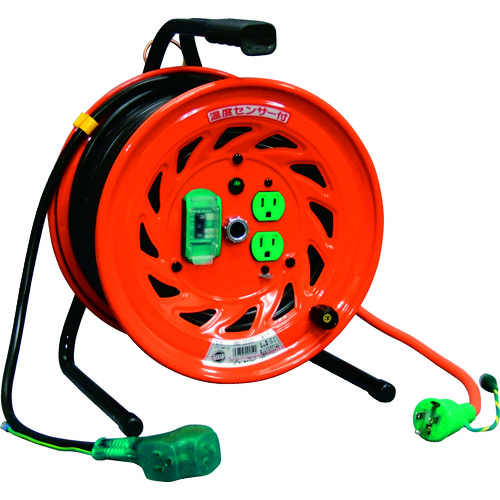

NICHIDO RND-EB30S
