Features

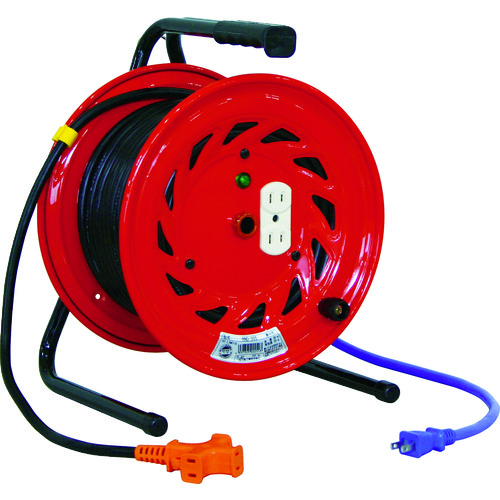

- The drum body is placed near the power source, and the end with the outlet is extended to the desired location (reverse power distribution type).
- Ideal for working at height and in tight spaces.
- The end of the wire is a triple outlet (three ports).
Applications
- For working at heights and in narrow spaces.
Specifications in detail
AC100V
indoor type
Comes with a "drum stopper" that stops the rotation of the cable and drum at the same time
Maximum current: 15A
Plug type: 2P plug
Plug: 2P Plug
cord tip: Triple outlet
Wire type: VCT
Wire specification length (m): 30 (3 + 27)
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 2
Rated current (A): 5
Maximum current (A): 15
Outlet specification rating: 15A / 125V
Outlet specification shape: (two-phase 2)
Outlet specification number: 3 + 2
Power lamp: Yes
Rated voltage (V): 100
Rated current: 5A (when fully wound), 15A (when fully extended)
Wire color: (primary side 3m) purple, (secondary side 27m) black
Side panel diameter (Φ): 290
Side panel color: Orange
NICHIDO RND-30S
