Features
- The current value can be freely controlled.
- If the current exceeds the set limit, the power to the drum will be cut off.
- By keeping the current setting low, you can work without tripping the building's main breaker.
- It comes with a "drum stopper" that stops the rotation of both the cable and the drum at the same time.
Applications
- Overcurrent prevention area. (Building maintenance, etc.)
- For renovation work.
Specifications in detail
AC100V
Current control range: 4 to 25A
Indoor
plug type: Pop-in
plug With power lamp
Wire color: Black
Side panel diameter (φ): 290
Side panel color: Navy blue
Wire type: VCT
Wire specification length (m): 30
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 3
Rated current (A): 5
Outlet specification rating: 2P, 15A, 125V Earthed
Outlet specification shape: (Three-phase 1)
Number of outlet specifications: 2
Temperature sensor: Automatic reset type
Power lamp: Yes
Ground terminal: Yes
2P/3P compatible plug: Yes
Earth leakage circuit breaker specification: Earth leakage protection Dedicated
earth leakage protection
Overload protection

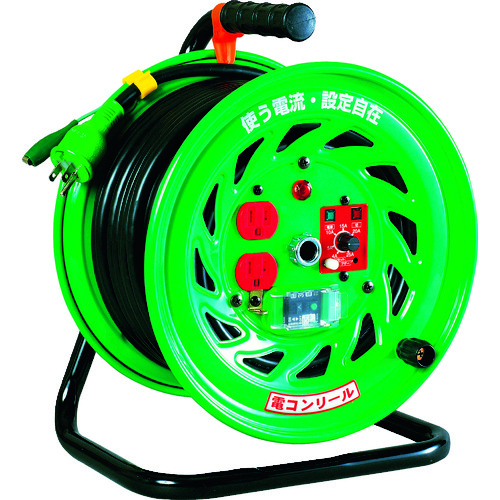

NICHIDO FC-EB32
