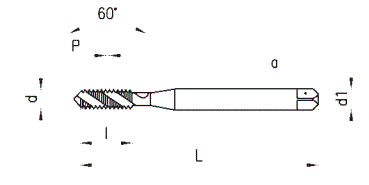

| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø |
| mm | mm | mm | mm | mm | nn | |||
| 264340.0100 | M3 | 0.5 | 371 | 56 | 10 | 3.5 | 2.7 | 2.5 |
| 264340.0200 | M4 | 0.7 | 371 | 63 | 12 | 4.5 | 3.4 | 3.4 |
| 264340.0300 | M5 | 0.8 | 371 | 70 | 14 | 6 | 4.9 | 4.2 |
| 264340.0400 | M6 | 1 | 371 | 80 | 16 | 6 | 4.9 | 5 |
| 264340.0500 | M8 | 1.25 | 371 | 90 | 18 | 8 | 6.2 | 6.8 |
| 264340.0600 | M10 | 1.5 | 371 | 100 | 20 | 10 | 8 | 8.5 |
| 264340.0700 | M12 | 1.75 | 376 | 110 | 24 | 9 | 7 | 10.2 |
| 264340.0800 | M16 | 2 | 376 | 110 | 26 | 12 | 9 | 14 |
| 264340.0900 | M20 | 2.5 | 376 | 140 | 32 | 16 | 12 | 17.5 |
| 264340.1000 | M24 | 3 | 376 | 160 | 36 | 18 | 14.5 | 21 |
