| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | ||
| 250395.0100 | 2 | 8 | 60 | 250395.0600 | 8 | 25 | 140 |
| 250395.0200 | 3 | 10 | 80 | 250395.0700 | 10 | 25 | 170 |
| 250395.0300 | 4 | 12 | 100 | 250395.0800 | 12 | 30 | 170 |
| 250395.0400 | 5 | 15 | 120 | 250395.0900 | 16 | 35 | 200 |
| 250395.0500 | 6 | 20 | 140 | 250395.1000 | 20 | 40 | 200 |

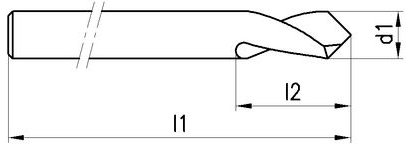

250395 Solid carbide NC spotting drill 90° MAGAFOR
Hard‘X, cylindrical shank, long
up to 65 HRC.
tolerance d1:h5
