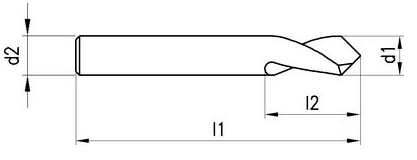

| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | ||
| 250400.0050 | 1 | 3 | 32 | 250400.0600 | 8 | 27 | 63 |
| 250400.0100 | 2 | 5 | 32 | 250400.0700 | 10 | 30 | 72 |
| 250400.0200 | 3 | 9 | 38 | 250400.0800 | 12 | 35 | 83 |
| 250400.0300 | 4 | 10 | 50 | 250400.0900 | 16 | 46 | 92 |
| 250400.0400 | 5 | 13 | 50 | 250400.1000 | 20 | 52 | 104 |
| 250400.0500 | 6 | 13 | 57 |
250400 - Solid carbide NC spotting drill 90° DIXI
1106R, without flt. Extra stable design.
