| Mã đặt hàng | d | l2 | l1 | Chuôi côn MT | Mã đặt hàng | d | l2 | l1 | Chuôi côn MT | Mã đặt hàng | d | l2 | l1 | Chuôi côn MT |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||||
| 253470.0100 | 14 | 500 | 600 | 1 | 253470.0800 | 16 | 650 | 750 | 2 | 253470.1700 | 22 | 500 | 600 | 2 |
| 253470.0200 | 14 | 650 | 750 | 1 | 253470.1100 | 18 | 500 | 600 | 2 | 253470.1800 | 23 | 500 | 600 | 2 |
| 253470.0300 | 14 | 850 | 1000 | 1 | 253470.1200 | 18 | 650 | 750 | 2 | 253470.1900 | 24 | 475 | 600 | 3 |
| 253470.0400 | 15 | 500 | 600 | 2 | 253470.1400 | 19 | 500 | 600 | 2 | 253470.2000 | 25 | 475 | 600 | 3 |
| 253470.0600 | 15 | 850 | 1000 | 2 | 253470.1500 | 20 | 500 | 600 | 2 | |||||
| 253470.0700 | 16 | 500 | 600 | 2 | 253470.1600 | 21 | 500 | 600 | 2 |

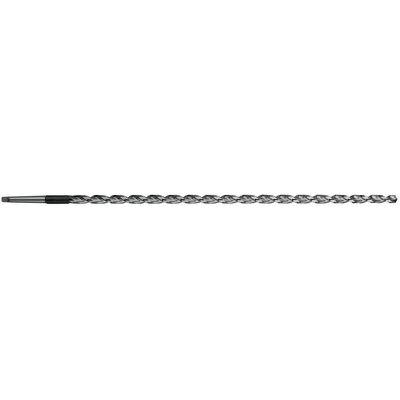

253470 Morse taper shank drill GÜHRING

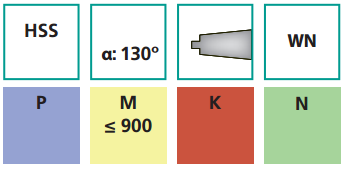

293, 298, 299, type GT100, HSS, works standard, extra-long.
Application
Particularly stable specialty drill, developed for drilling extremely deep holes. Suitable for drilling cast iron and steels up to max. 1000 N/mm2.
Exception: Cr-Ni steels, stainless steels and similar material
