Mirror type: Monocular (with 60° viewing angle)
Reflected illumination: Single-lamp oblique type, stepless volume dimming, white LED
Transmitted illumination: Stepless volume dimming, white LED, with green filter
>Total magnification (times): 30
Objective lens (times): 2
Eyepiece lens (times): 15
Field of view (mm): 13
Working distance (mm): 67
> Observable height (mm): 11 5
Width (mm): 210
Depth (mm): 343
Height (mm): 463
Transmitted light (W): Stepless volume dimming, white LED, with green filter
Power supply (V): AC100-240V
Power supply: AC100-240V
Manufacturer code: 176-818
Measurement range (mm): 50 x 50
Power consumption (W): 4.2

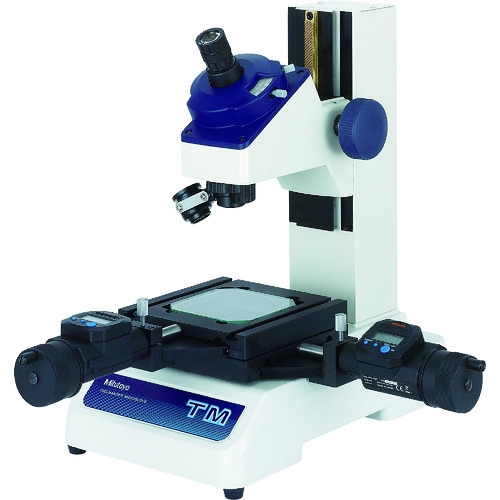

Mitutoyo Corporation TM-505B
