| Mã đặt hàng | 148205.0100 | 148205.0200 | 148205.0300 | 148205.0400 | |
| Dải đo | µm | 0...350 | 0...350 | 0...350 | 0...350 |
| Độ phân giải | µm | 0.001 | 0.001 | 0.001 | 0.001 |
| Feeder length | mm | 15 | 15 | 15 | 15 |
| Probe sections | mm | 0.5...15 | 0.5...15 | 0.5...15 | 0.5...15 |
| Lực đo | mN | 0.5 | 0.5 | 0.5 | 0.5 |
| Khối lượng | kg | 2.6 | 2.6 | 2.6 | 2.6 |

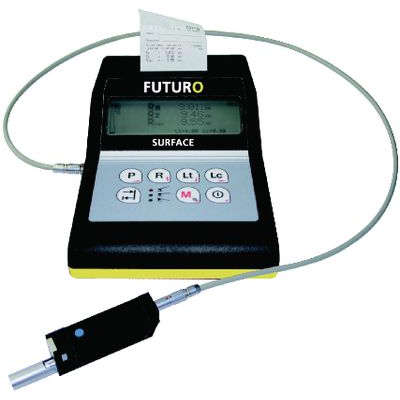

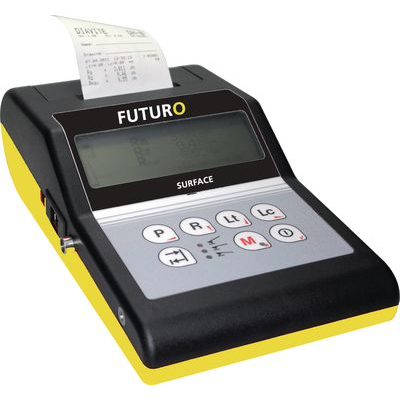

SwissMade- Portable roughness tester with skid tracer or skidless tracerfor universal use in the
shop or the test room. This device can be equipped with a retrofit kit for optical measurement
of roughness.
Designs:
148205.0100: Drive unit VH for tracer with skid incl. standard tracer SH - 5 µm/90°
148205.0200: Drive unit VH without standard tracer SH
148205.0300: Drive unit VHF for tracer with skid + skidless tracer incl. standard tracer SH - 5
µm/90°
148205.0400: Drive unit VHF without standard tracer
Features:
Easy menu navigation, multilingual
5 probe sections, all adjustable 0.5...15 mm
Measuring speed adjustable
Automatic calibration
Calibration of up to 8 sensors
8 measurement programmes
Memory for 50 measurement profiles
Tolerance for exceeded measurement values
Key block selectable
USB interface (option: Bluetooth)
Parameters:
ISO/DIN: Ra, Rz(DIN), Rmax, R3z, Rt,Rq (RMS), Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, Rpc, C1, C2,
carrier Rmr, C0, Cz
JIS: Ra (JIS), Rz (JIS)
ISO 12085:R, AR, Rx
Note:
For this product we recommend a training!
For further technical information, please ask for special brochure or for advice.
Package contents:
Delivered in case including:
Calibration standard Ra3 µm
Adapter with connection cable
USB connection cable, power supply
Operating manual, test certificate
DIASOFT BASIC software
Basic program with Ra, Rq, Rv, Rp, Rt, Sm, Rsk, Rku, Rz, RTp, RHTp, RDq, RPc, roughness curve,
Abbott curve
Note:
148235 Accessories
148230 Software
148210 Retrofit kit FUTURO SURFACE OPTIC
148120 Roughness standard
