Features
- The titanium aluminum nitride coating provides outstanding wear and heat resistance.
- Workability is improved as cutting chips and powder are less likely to adhere.
Purpose
- Workpiece materials: steel plate (4.0 mm or less), stainless steel (1.6 mm or less), aluminum, copper, plastic, etc.
Specifications in detail
Spiral specification
Hexagonal shaft shank
Effective cutting capacity: 9 stages (4/5/6/7/8/9/10/11/12)
Recommended rotation speed (rpm): Ferrous metal (600-900), Stainless steel (300-450)
Impact driver compatible
stage width (mm): 4.5 (5.5)
Number of stages (stages): 9
Shank diameter (mm): Opposite side 6.35
Drilling dimensions (φ): 4, 5 , 6, 7, 8, 9, 10
, 11, 12 Total length (mm): 72
Surface treatment: Titanium nitride aluminum coating
Shank shape: Hexagonal shaft
Drilling dimensions (φmm): (4), 5, 6, 7, 8, 9, 10, 11, 12

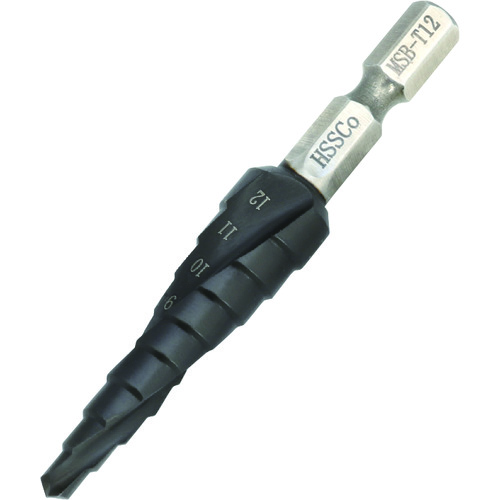

MARVEL MSB-T12
