Features
- Connect it to the coolant pump of a machine tool (CNC/CMC) to clean the inside of the machine tool with cutting oil.
Purpose
- For cleaning inside machine tools.
Specifications in detail
Spray shape: Straight/drill-shaped
Nozzle outer diameter (mm): 13
Oil supply port: G3/8
Operating pressure (MPa): 0.7
Total length (mm): 114.5
Compatible fluid: Cutting oil
Recommended hose inner diameter: φ7.5-8 or φ10
Attached hose nipple caliber: φ8.7, φ11
Spray volume (at 0.4Mpa) (l/min): 7
Nozzle caliber: G1/8

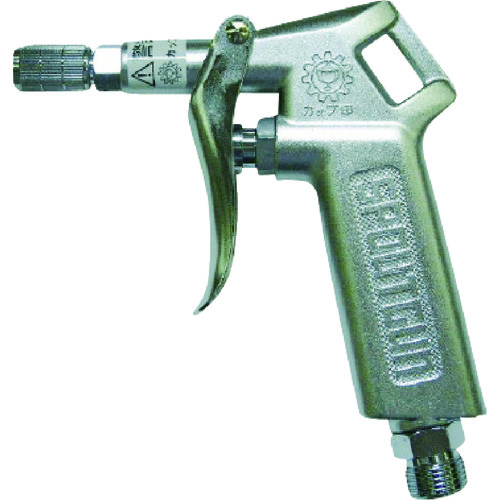

KURITA SP200
