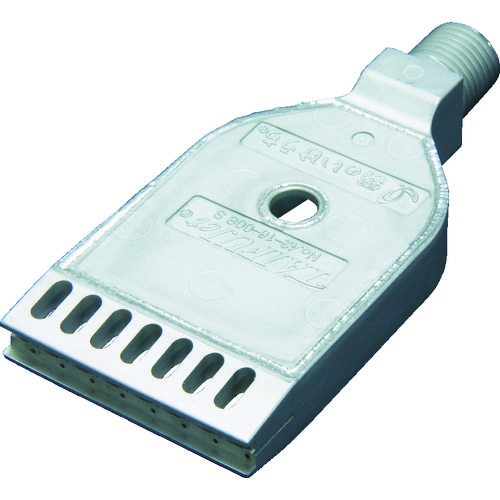

Ikeuchi Việt Nam | Ikeuchi flat air nozzle TAIFUJet series made of stainless steel 316L screw 1/4 male Φ1.0 MW3640655

Thương hiệu: Ikeuchi

Liên hệ

A nozzle that powerfully sprays amplified air.
Unique flat design that blows out air more evenly.
Quiet design that is friendly to the working environment.
Made of stainless steel that is resistant to impact and heat.
Three types of hole diameters: φ0.8, φ1.0, and φ1.2, and two types of screws: PT and NPT.

For draining and drying, blowing away dirt, air cooling, etc.
Drain and dry.
Blow away the trash.
Air cooling.
Cleaning.
Detachment.
Air curtains, etc.

Ikeuchi 1/4MTF-F42-16-010S316L-IN

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

Thông tin sản phẩm

Official manufacturer part number: 1/4M TF-F 42-16-010 S316L-IN
Thread size: R1/4
Air consumption (NL/min): 440 (at 0.3MPa)
Humidification capacity (L/h): 7.2
Tank capacity (L): 18
Nozzle installation port: R1/4
Nozzle shape: Flat type
Nozzle width (mm): 42
Nozzle length (mm): 90
Nozzle diameter (mm): 1
Air installation port: R1/4
Width (mm): 42
Overall length (mm): 90
