Features
- This allows you to easily and reliably check the effectiveness of your wrist strap.
- Compliant with anti-static standards (RCJS).
- This is an indispensable checker for morning and afternoon start-up inspections.
- It is a rod electrode (25mmφ x 150mm) specified by the RCJS standard.
- Pass/fail judgments according to standards can be made easily and accurately.
- It comes with a hook-and-loop fastener that allows it to be fixed to a desk, etc.
Specifications in detail
Banana plug for alligator clip conversion, with hook-and-loop fastenerWidth
(mm): 70 (excluding protrusions)
Depth (mm): 115 (excluding protrusions)
Height (mm): 28 (excluding protrusions)
Display: LOW... Wrist strap ≦ 750kΩ, GOOD... 750kΩ < Wrist strap < 9MΩ (※ Buzzer sounds at GOOD), HIGH... 9MΩ ≦ Wrist strapAccuracy
: 750kΩ... -0%, +6% / 9MΩ... -6%, +0%
Power supply: 1 laminated (6F22) battery includedBattery
life: More than 15,000
timesExternal dimensions: 70 (W) x 28 (H) x 115 (D) mm (excluding protrusions), electrode is 25mmφ x 160mm (metal part is 150mm)
Power cord length (m): 0.45

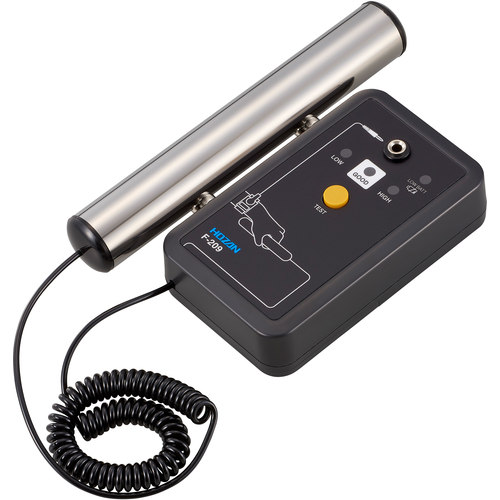

HOZAN F-209
