Thông tin sản phẩm

Features

  • Used for simple fixing of thin, lightweight parts.
  • The workpiece is pressed sideways to position it.

Applications

  • Easy fixing of lightweight items such as printed circuit boards, plastic exteriors, etc. For lateral positioning of lightweight workpieces.
Specifications in detail
Seal with steel pin
No
press-fit
installation Easy to install and does not take up space
d2(mm): 8
l2(mm): 13.9
d1(mm): 12
l1(mm): 13
Spring force F(N, max): 100
Stroke s/x(mm): 2.6
Mounting hole D(mm): 12

HALDER 22150.0031

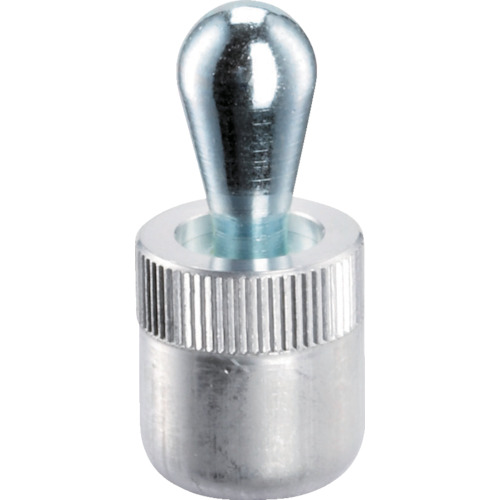

HALDER Việt Nam | HALDER Pressure Pin, Press-in Type, No Seal, 12 x 13L Lateral Plungers MW1287432

Thương hiệu: HALDER
Còn hàng
Liên hệ

MADE IN GERMANY

Features: Used for simple fixing of thin, lightweight parts.The workpiece is pressed sideways to position it.
Applications: Easy fixing of lightweight items such as printed circuit boards, plastic exteriors, etc. For lateral positioning of lightweight workpieces.
Xem thêm

Thông tin sản phẩm

Features

  • Used for simple fixing of thin, lightweight parts.
  • The workpiece is pressed sideways to position it.

Applications

  • Easy fixing of lightweight items such as printed circuit boards, plastic exteriors, etc. For lateral positioning of lightweight workpieces.
Specifications in detail
Seal with steel pin
No
press-fit
installation Easy to install and does not take up space
d2(mm): 8
l2(mm): 13.9
d1(mm): 12
l1(mm): 13
Spring force F(N, max): 100
Stroke s/x(mm): 2.6
Mounting hole D(mm): 12

HALDER 22150.0031
