- A stainless steel sheathed heater is used as the heating element, making it clean and highly durable.
- The controller can be separated from the hot air generator body, making it ideal for incorporating into other equipment.
- Heating, drying, and baking in the drying oven.
- Remove water droplets and dry after cleaning.
- Drying and hardening after bonding of electronic components.
Specifications in detail
Made in an ISO14001 certified factory
Products with an F at the end of the model number include an inverter.
Program operation function
RS-485 communication function
Power supply (V): Three-phase 200
Heater capacity (kW): 7.5
Blower specifications (50/60Hz) Maximum air volume (m^3/min): 5.4/6.2
Blower specifications (50/60Hz) Maximum static pressure (kPa): 0.63/0.91
Blower specifications (50/60Hz) Capacity (kW): 0.15
Intake gas temperature (℃): -10 to 230
Outlet gas temperature range (℃): Room temperature to 350

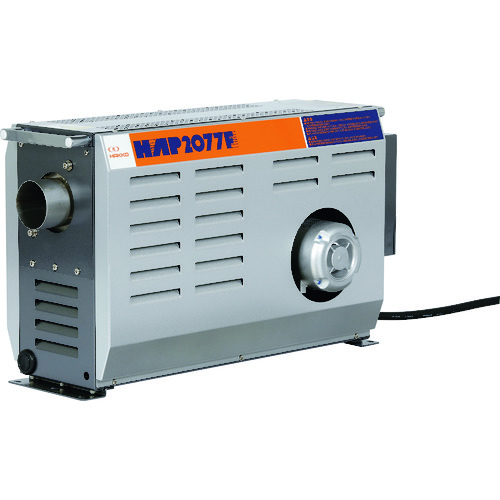

HAKKO HAP2077F
