Features
- The self-adhesive adhesive layer fills the gaps between the overlapping layers, creating a perfect integration, providing excellent waterproof and insulating properties.
- It has excellent ozone resistance.
Purpose
- Power distribution construction.
Specifications in detail
Overlap adhesive strength: 21.5N or more/10mm
Tensile strength: 6N/mm2
Operating temperature range: 0-60℃
Dielectric breakdown strength: 15kV/mm or more
Tokyo Electric Power Company standard 6Y-23
Volume resistivity: 1x10[to the power of 15]/Ωcm or more
A cutter is required for cutting
Color: Black
Width (mm): 20
Length (m): 10
Thickness (mm): 0.5
Tape cutting conditions: Can be cut by hand

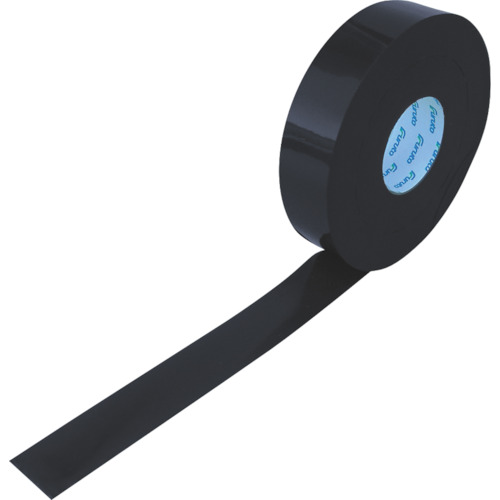

FURUTOH H-520
