Features
- By using two stages of extension, we have achieved both an ultra-low floor and a high stroke.
- Although the body height is low, it has a stroke of 70 mm.
- Improves the work efficiency of changing the direction of rollers.
- Supports work with low-bed rollers.
- Fixing holes are standard.
- Can be used in clean rooms.
Purpose
- For changing the direction of rollers when transporting heavy objects.
- For lifting and aligning during maintenance.
Specifications in detail
Load return type
Electroless nickel plating specification
Two-stage extension single-acting cylinder jack
Return method is load return
Attached coupler type: S-1R
Head cap has anti-slip groove Lifting
force (kN): 100
Stroke (mm): 70
Minimum height (mm): 90
Head diameter (mm): 41
Height (mm): 90
Lifting force kN (t): 100 (10)
Lifting force (t): 10
Horizontal pushing capacity kN (t): 100 (10)

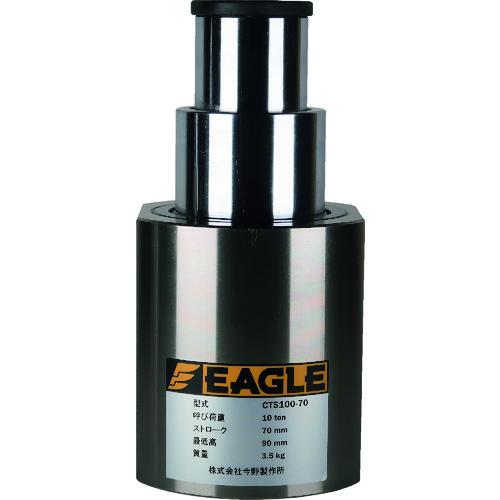

EAGLE CTS100-70
