Features
- The aluminum body makes it lightweight.
- Since it has a two-stage discharge (high and low switching), the jack stroke amount becomes larger at low pressure such as when there is no load, thereby shortening the working time.
- By integrating the air vent and oil level gauge and placing them on top of the pump, the risk of oil leakage is reduced.
Specifications in detail
Effective oil volume (L): 1.0
Discharge volume per operation (ml) High pressure: 1.65
Discharge volume per operation (ml) Low pressure: 12.9
Maximum operating pressure (MPa) High pressure: 70
Maximum operating pressure (MPa) Low pressure: 2
Maximum operating pressure (MPa): 70
Discharge port diameter: Rc3/8
Port diameter: Rc3/8

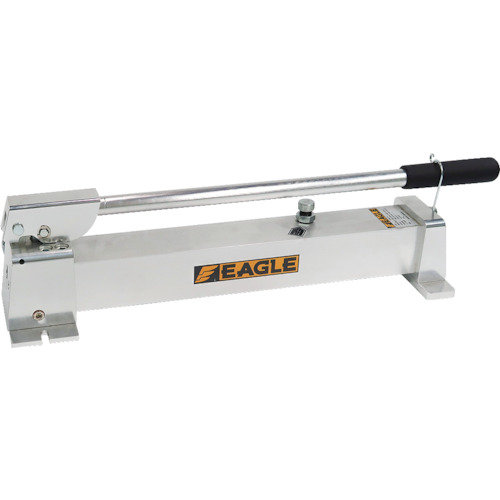

EAGLE APS1-70
