| Mã đặt hàng | 122580.0150 | |
| Dải đo | mm | 1 |
| Độ phân giải | 0.001 | |
| Bezel Ø | mm | 60 |
| Áp lực đo | N | 1.5 |
| Độ chính xác | µm | 5 |
| Lettering | 0...100 | |

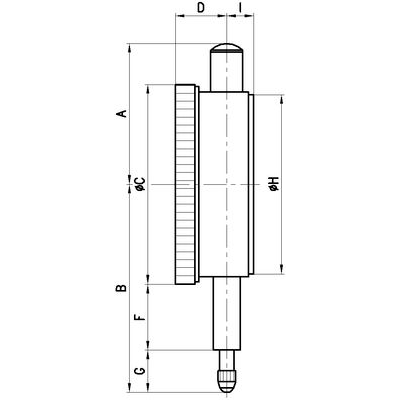

| A | mm | 42.3 |
| B | mm | 61.4 |
| C | mm | 60 |
| D | mm | 15.4 |
| F | mm | 19 |
| G | mm | 12.6 |
| H | mm | Ø55 |
| I | mm | 8 |
| 1revolution | mm | 1 |
122580 - Dial gauge MILLI
Standard version with metall housing, impact resistance, graduated scale dial can be locked, tolerance marks.
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
| Mã đặt hàng | 122580.0150 | |
| Dải đo | mm | 1 |
| Độ phân giải | 0.001 | |
| Bezel Ø | mm | 60 |
| Áp lực đo | N | 1.5 |
| Độ chính xác | µm | 5 |
| Lettering | 0...100 | |
| A | mm | 42.3 |
| B | mm | 61.4 |
| C | mm | 60 |
| D | mm | 15.4 |
| F | mm | 19 |
| G | mm | 12.6 |
| H | mm | Ø55 |
| I | mm | 8 |
| 1revolution | mm | 1 |
122580 - Dial gauge MILLI
Standard version with metall housing, impact resistance, graduated scale dial can be locked, tolerance marks.
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
