| Mã đặt hàng | 122430.0100 | 122430.0200 | 122430.0300 | |
| Loại | M2/30S | M2/50S | M2/80S | |
| Dải đo | mm | 30 | 50 | 80 |
| Độ phân giải | mm | 0.01 | 0.01 | 0.01 |
| Bezel Ø | mm | 58 | 58 | 58 |
| Áp lực đo | N | 0.8...1.6 | 1.5...2.2 | 1.5...2.5 |
| 1 revolution | mm | 1 | 1 | 1 |
| Độ chính xác | µm | 25 | 30 | 40 |
| Lettering | 0...100 | 0...100 | 0...100 | |
| Protectionantichoc | X | X | X | |

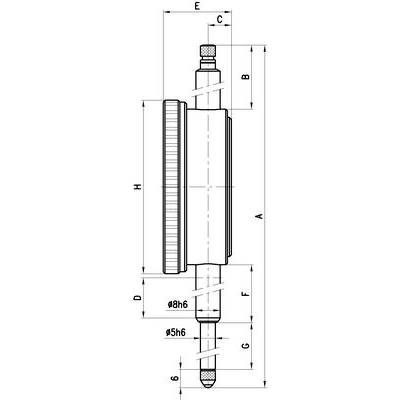

| A | mm | 148 | 232 | 312 |
| B | mm | 33 | 75.5 | 106.5 |
| C | mm | 7.5 | 7.5 | 7.5 |
| D | mm | 16.5 | 35 | 55 |
| E | mm | 23 | 23 | 23 |
| F | mm | 22 | 36.5 | 56.5 |
| G | mm | 35 | 55 | 85 |
| H | mm | Ø58 | Ø58 | Ø58 |
122430 - Dial gauge Käfer
With large measuring range and impact-resistant. Measuring pins and clamping shaft of stainless steel.
Package contents:
Delivered in transport packaging.
Appropriate accessories:
Measuring inserts 124008; 124010
