| Mã đặt hàng | 121730.0100 | 121730.0200 | |
| Kiểu | DIGICO 1 | DIGICO 2 | |
| Dải đo | mm | 30 | 60 |
| Độ phân giải | mm | 0.01/0.001 | 0.01/0.001 |
| Độ chính xác | µm | 2 | 3 |
| Áp lực đo | N | 0.85...1.10 | 0.9...1.45 |
| Kích thước | mm | 199x49x29 | 233x49x29 |
| Tiêu chuẩn chống nước | IP54 | IP54 | |
| Chiều cao số | mm | 9 | 9 |

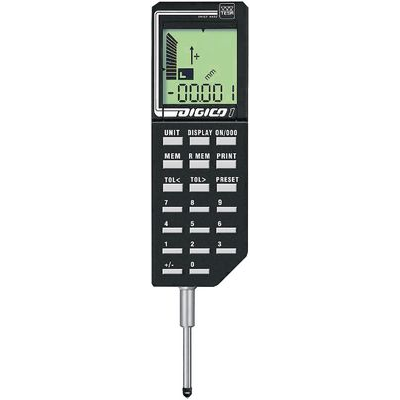

121730 - Dial gauge digital TESA DIGICO 1 / 2
These gauges are characterised by their many functions, large measurement range and high precision.
Features:
Combined analogue / digital display
Zero setting in any position
Numbers entered with numeric keypad
mm/inch conversion
Reversible count direction
Limit value input
Measurement value classifiation
MAX / MIN / DELTA memory
Data output RS-232
Package contents:
Delivered in transport packaging incl. Lever for plunger retraction and factory certifiate.
Appropriate batteries:
1 pieces 155050.1900 - ER6C / 3.6 V (included in scope of delivery).
Appropriate accessories:
Signal lines 121740 /.0200 / .0300
Measuring inserts 124008; 124010
Accessories 121740
