| Mã đặt hàng | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn | Chiều cao số |
| mm | mm | N | µm |
mm | ||
121985.0101 |
12.7 |
0.0002...1 |
≤ 1.5 |
3 | IP42 | 8 |
121985.0200 |
25.4 |
0.0002...1 |
≤ 1.8 |
3 | IP42 | 8.5 |

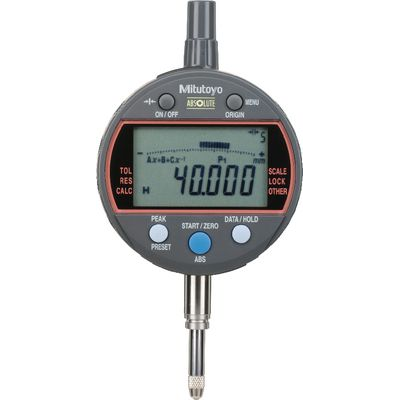

121985 - Digital dial gauge MITUTOYO CALCULATION ID-C
Series 543 - Multifunctional dial indicator with absolute scale and integrated calculation function for the widest range of applications. Especially suited to measuring outside and inside radii using a measuring bridge.
Version:
In the calculation formula Ax + B + C -1 the coeffiients are freely selectable and can be input. On
application of the dial indicator the result is calculated using the spindle displacement and the
integral formula.
Features:
LCD display can be rotated 330°
ABSOLUTE™ system
ZERO / ABS function
Tolerance judgment GO/±NG
PRESET (fied value setting)
MAX / MIN hold function
Calculation function
Data output Digimatic
Package contents:
Delivered in transport packaging without measuring bridge 122000.
Appropriate batteries:
1 pieces 155050.0900 - SR44 (357/303) / 1.55 V (included in scope of delivery).
Appropriate accessories:
Signal lines 122000 /.0300 /.0400; 154558.0060
Measuring inserts 124008; 124010
Accessories 122000
