| Mã đặt hàng | 122590.0050 | 122590.0150 | |
| Dải đo | mm | 10 | 10 |
| Độ phân giải | 0.01 | 0.01 | |
| Bezel Ø | mm | 55 | 60 |
| Áp lực đo | N | 1.5 | 1.5 |
| Độ chính xác | µm | 20 | 20 |
| Lettering | 0...100 | 0...100 | |

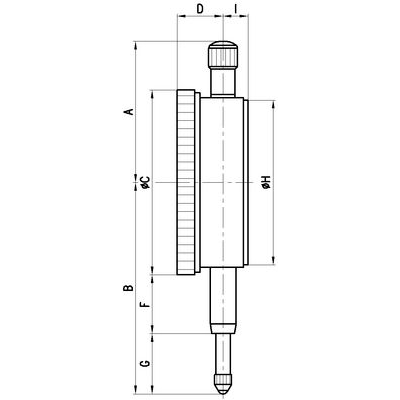

| A | mm | 47.4 | 45.7 |
| B | mm | 68.8 | 68.3 |
| C | mm | Ø55 | Ø60 |
| D | mm | 15.3 | 15.1 |
| F | mm | 18.35 | 19 |
| G | mm | 22.8 | 19.5 |
| H | mm | Ø50 | Ø55 |
| I | mm | 8 | 8 |
| 1 revolution | mm | 1 | 1 |

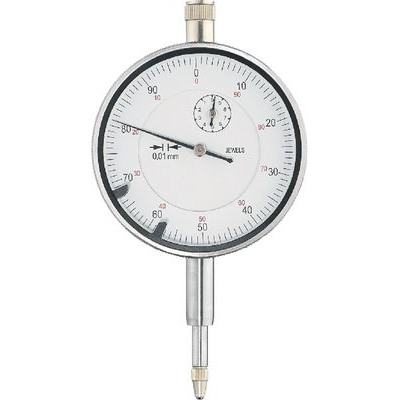

122590 - Dial gauge CENTI
Standard version with metall housing, impact resistance, graduated scale dial can be locked, tolerance marks.
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
