| Mã đặt hàng | 560040.0150 | 560040.0250 | |
| Kiểu | HIBF20N | HITH20N | |
| Tiêu chuẩn | IP20 | IP20 | |
| Chiều dài thân | mm | 280 | 175 |
| Chiều dài cánh | mm | 422 | 400* |
| Công suất | W | 20 | 20 |
| Góc chiếu | 24° | 24° |

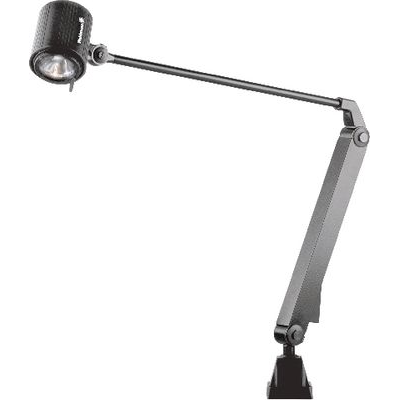

560040 - Halogen machine lamp WALDMANN
ideal lamp for bright, concentrated light, lamp body of aluminium with heat protection sheath, built-in transformer 12/230 V, mains connection 230 V, with cable and plug, halogen lamp, screw base 60 x 60 mm (screw spacing 45 mm).
Other versions (12 V, 24 V, with matt glass lens, etc.) are available. Additional mounting feet and accessories see 560380.
Replacement lamps see 562090 type 50x24°-20W.
