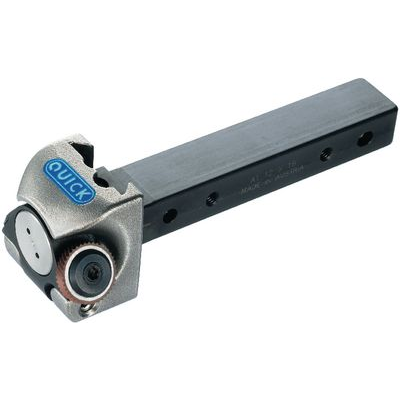

| Mã đặt hàng | Kích cỡ thân gá | Division | Đường kính phôi trụ Ø | Chiều dài thân | Kích cỡ bánh răng nhám |
| mm | mm | mm | mm | ||
| 474980.0100 | 10x16 | 0.4...1.2 | 3...50 | 80 | Ø 14.5x3x5 |
| 474980.0200 | 12x16 | 0.4...1.2 | 3...50 | 80 | Ø 14.5x3x5 |
| 474980.0300 | 16x16 | 0.4...1.2 | 3...50 | 80 | Ø 14.5x3x5 |
Flat knurl RAA:
• right-handed tool: 1 knurling roller 30°R
• left-hand tool: 1 knurling roller 30°L
Spiral knurl RBR with right-hand tool:
• Spiral 15°: 1 knurling roller 15°R
• Spiral 30°: 1 knurling roller 90°
Spiral knurl RBL with left-hand tool:
• Spiral 15°: 1 knurling roller 15°L
• Spiral 30°: 1 knurling roller 90°
Is part of:
475020.0050 Set of knurl milling tools QUICK A1
Corresponding inserts:
475250 Knurl roller QUICK
475260 Knurl roller QUICK
