• Optimum control of open-loop control type electromagnetic proportional control valve.

• Applicable load: Proportional solenoid (DC24V)
• Command input: DC0 to 5V or 1kΩ Potentiometer
• Output current: 0~850mA (average value indication)
• Power consumption: max. 32VA
• Input impedance: 50kΩ
• Ambient operating temperature: 0 to 55℃ (no freezing)
• Ambient operating humidity: 25 to 90%RH
• Trimmer adjustment: MIN 0 to 400 mA or more (when input is 0 V), MAX 850 to 300mA or less (at 5V input)
• Response time: TMU 0.05 or less to 3.5 seconds or more (at maximum output), TMD 0.05 or less to 3.5 seconds or more (at maximum output)
< li>Power supply (V): AC100, AC200, AC220 (50/60Hz)
• Width (mm): 50
• Depth (mm): 125
• Height (mm): 145

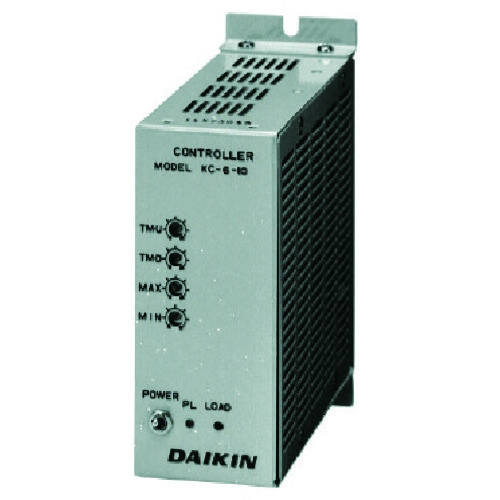

Daikin Industries, Ltd. KC-6-10
