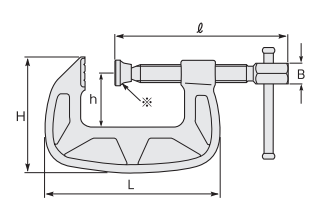

| Mã đặt hàng | Dải kẹp | L | l | H | h | B | Lực kẹp | Khối lượng |
| mm | mm | mm | mm | mm | mm | kN | kg | |
| BC 25E | 0...25 | 78 | 80 | 60 | 26 | 12 | 18 | 0.2 |
| BC 38E | 0...38 | 99 | 98 | 69 | 31 | 12 | 20 | 0.3 |
| BC 50E | 0...50 | 118 | 118 | 78 | 36 | 14 | 21.8 | 0.45 |
| BC 75E | 0...75 | 157 | 152 | 96 | 46 | 17 | 27.3 | 0.8 |
| BC 100E | 0...100 | 197 | 190 | 114 | 56 | 17 | 34.3 | 1.3 |
| BC 125E | 0...125 | 237 | 225 | 131 | 66 | 19 | 39.2 | 1.7 |
| BC 150E | 0...150 | 276 | 262 | 149 | 76 | 22 | 44.1 | 2.8 |
| BC 200E | 0...200 | 346 | 324 | 174 | 92 | 22 | 49 | 4.2 |
| BC 250 | 0...250 | 415 | 386 | 204 | 108 | 27 | 58.8 | 7 |
| BC 300 | 0...300 | 485 | 451 | 230 | 124 | 27 | 68.6 | 9 |
