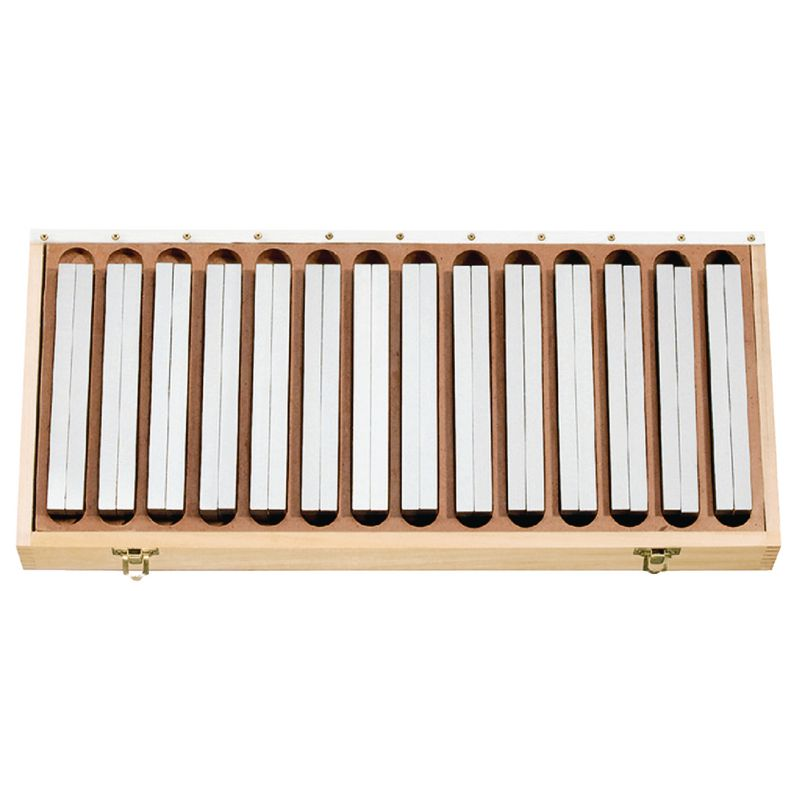

Bộ căn mẫu song song 150 mm FUTURO-#143170

Thương hiệu: FUTURO Mã sản phẩm: (Đang cập nhật...)
Còn hàng
Liên hệ

143170 Parallel base set FUTURO (Milling blocks)– Hardened steel, for use as supports for workpieces during a wide range of
machining processes. The height tolerance of the parallel pair allows parallel clamping of the workpiece.

Xem thêm

Thông tin sản phẩm

Mã đặt hàng Số cặp Chiều dài Profile
    mm mm
143170.0100 14

150

10x14, 10x16, 10x18, 10x20, 10x22, 10x24, 10x26, 10x28, 10x30, 10x32, 10x35, 10x40, 10x45, 10x50

143170 Parallel base set FUTURO
(Milling blocks)– Hardened steel, for use as supports for workpieces during a wide range of
machining processes. The height tolerance of the parallel pair allows parallel clamping of the workpiece.
Features:
Hardened approx. 58-60HRC
Ground plane-parallel in pairs
Pair height tolerance 0.01 mm
Nominal dimensions to DIN ISO 2768/Part 1 medium
Nominal dimension printed on product face
Package contents:
Delivered in transport packaging including wooden base.
Replacement parallels 142172
