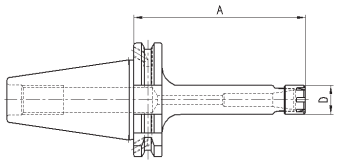

| Mã đặt hàng | Cone | Áo côn | A | D | Dải kẹp |
| mm | mm | mm | |||
| 331036.0100 | SK40 | ER11 | 100 | 16 | 0.5...7 |
| 331036.0200 | SK40 | ER11 | 160 | 16 | 0.5...7 |
| 331036.0300 | SK40 | ER16 | 100 | 22 | 0.5...10 |
| 331036.0400 | SK40 | ER16 | 160 | 22 | 0.5...10 |
| 331036.0500 | SK40 | ER25 | 100 | 35 | 0.5...16 |
| 331036.0600 | SK40 | ER25 | 160 | 35 | 0.5...16 |
DIN 69871, Type AD/B, precision-balanced for 25000 rpm.

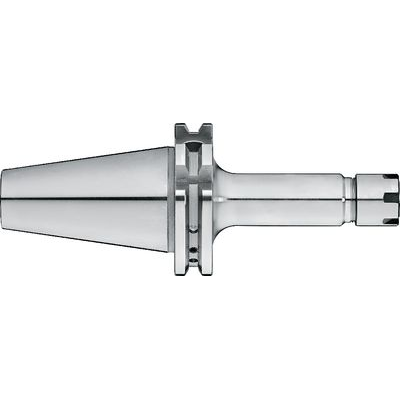

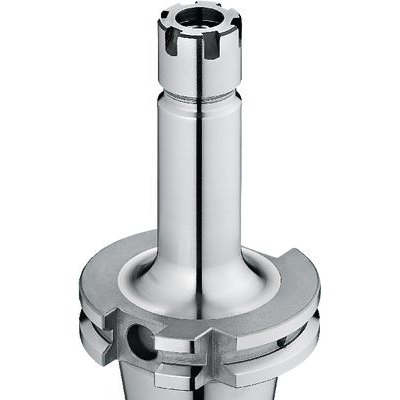

331036 Mini - Draw-in collet chuck FUTURO
Application: Clamping of tools with cylindrical shank in collet chuck type ER / ESX.
Version: With Balluff chip hole.
Appropriate accessories:
339000 Collet chuck REGO-FIX ER DIN 6499
339040 Collet chuck REGO-FIX ER-UP DIN 6499
339060 Assortment of collet chucks REGO-FIX ER DIN 6499
339100 Tap drill pincers REGO-FIX ER-GB DIN 6499
339120 Tap drill pincers PCM DIN 6499
339180 Tightening nut REGO-FIX Hi-Q/ER DIN 6499
339500 Chuck key
339520 Chuck key
339705 Taper cleaner
339720 Cone cleaner
339730 Cleaner
Package contents: With clamping nut, without key
