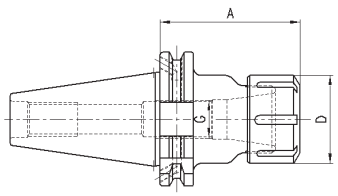

| Mã đặt hàng | Cone | Áo côn | A | D | Dải kẹp | G |
| mm | mm | mm | ||||
| 331034.0100 | SK40 | ER16 | 70 | 28 | 0.5...10 | M11x1 |
| 331034.0200 | SK40 | ER16 | 100 | 28 | 0.5...10 | M11x1 |
| 331034.0300 | SK40 | ER16 | 160 | 28 | 0.5...10 | M11x1 |
| 331034.0400 | SK40 | ER16 | 200 | 28 | 0.5...10 | M11x1 |
| 331034.0500 | SK40 | ER20 | 70 | 34 | 0.5...13 | M14x1 |
| 331034.0600 | SK40 | ER20 | 100 | 34 | 0.5...13 | M14x1 |
| 331034.0700 | SK40 | ER25 | 70 | 42 | 0.5...16 | M18x1.5 |
| 331034.0800 | SK40 | ER25 | 100 | 42 | 0.5...16 | M18x1.5 |
| 331034.0900 | SK40 | ER25 | 160 | 42 | 0.5...16 | M18x1.5 |
| 331034.1000 | SK40 | ER25 | 200 | 42 | 0.5...16 | M18x1.5 |
| 331034.1100 | SK40 | ER32 | 70 | 50 | 1...20 | M24x1.5 |
| 331034.1200 | SK40 | ER32 | 100 | 50 | 1...20 | M24x1.5 |
| 331034.1300 | SK40 | ER32 | 160 | 50 | 1...20 | M24x1.5 |
| 331034.1400 | SK40 | ER32 | 200 | 50 | 1...20 | M24x1.5 |
| 331034.1500 | SK40 | ER40 | 70 | 63 | 2...30 | M28x1.5 |
| 331034.1600 | SK40 | ER40 | 100 | 63 | 2...30 | M28x1.5 |
| 331034.1700 | SK40 | ER40 | 160 | 63 | 2...30 | M28x1.5 |

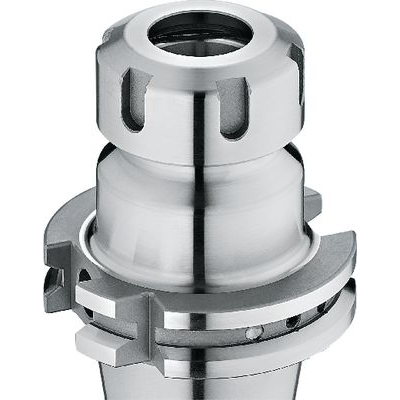

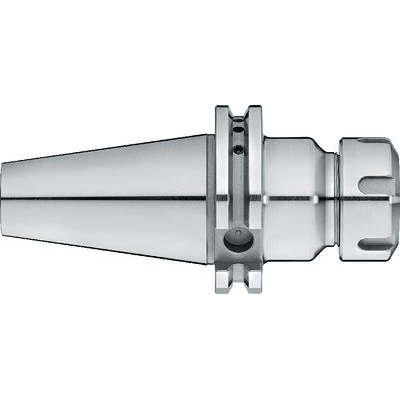

331034 Draw-in collet chuck FUTURO
Application: Clamping of tools with cylindrical shank in collet chuck type ER / ESX.
Version: With Balluff chip hole.
Appropriate accessories:
339000 Collet chuck REGO-FIX ER DIN 6499
339040 Collet chuck REGO-FIX ER-UP DIN 6499
339060 Assortment of collet chucks REGO-FIX ER DIN 6499
339100 Tap drill pincers REGO-FIX ER-GB DIN 6499
339120 Tap drill pincers PCM DIN 6499
339500 Chuck key
339520 Chuck key
339705 Taper cleaner
339720 Cone cleaner
Package contents: With clamping nut, without key
