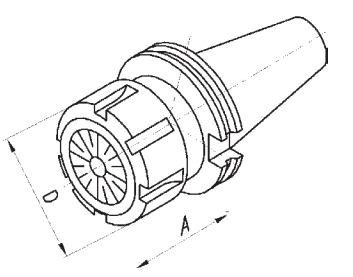

| Mã đặt hàng | Cone | Áo côn | A | D | Dải kẹp |
| mm | mm | mm | |||
| 331060.0100 | SK40 | ER16 | 100 | 32 | 0.5…10 |
| 331060.0200 | SK40 | ER16 | 160 | 32 | 0.5…10 |
| 331060.0220 | SK40 | ER16 | 200 | 32 | 0.5…10 |
| 331060.0280 | SK40 | ER25 | 100 | 42 | 0.5…16 |
| 331060.0300 | SK40 | ER25 | 160 | 42 | 0.5…16 |
| 331060.0320 | SK40 | ER25 | 200 | 42 | 0.5…16 |
| 331060.0380 | SK40 | ER32 | 100 | 50 | 1…20 |
| 331060.0400 | SK40 | ER32 | 160 | 50 | 1…20 |
| 331060.0420 | SK40 | ER32 | 200 | 50 | 1…20 |

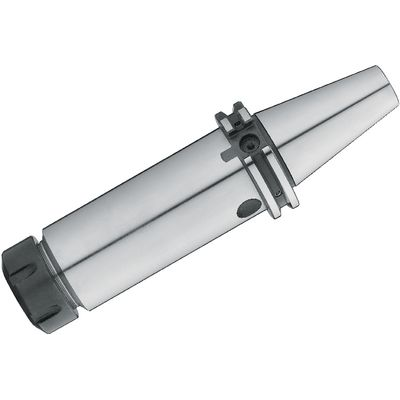

331060 Collet chuck FUTURO
DIN6499 ER / ESX, long version.
Application:Clamping of tools with cylindrical shank in the ER collet.
Appropriate accessories:
339000 Collet chuck REGO-FIX ER DIN 6499
339040 Collet chuck REGO-FIX ER-UP DIN 6499
339060 Assortment of collet chucks REGO-FIX ER DIN 6499
339100 Tap drill pincers REGO-FIX ER-GB DIN 6499
339120 Tap drill pincers PCM DIN 6499
339500 Chuck key
339520 Chuck key
339705 Taper cleaner
339720 Cone cleaner
Package content: Includes clamping nut, does not include wrench.
