| Mã đặt hàng | Cone | Áo côn | A | Dải kẹp | D |
| mm | mm | ||||
| 331040.0100 | SK40 | ER16 | 63 | 0.5...10 | 32 |
| 331040.0200 | SK40 | ER25 | 60 | 0.5...16 | 42 |
| 331040.0300 | SK40 | ER32 | 70 | 1...20 | 50 |
| 331040.0400 | SK40 | ER40 | 80 | 2...30 | 63 |
DIN 69871, Form AD/B, balanced for 15,000 rpm.

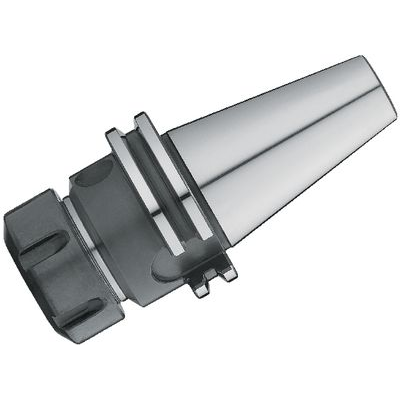

331040 Collet chuck FUTURO
DIN6499 ER / ESX, short version.
Application: Clamping of tools with cylindrical shank in the ER collet.
Appropriate accessories:
339000 Collet chuck REGO-FIX ER DIN 6499
339040 Collet chuck REGO-FIX ER-UP DIN 6499
339060 Assortment of collet chucks REGO-FIX ER DIN 6499
339100 Tap drill pincers REGO-FIX ER-GB DIN 6499
339120 Tap drill pincers PCM DIN 6499
339500 Chuck key
339520 Chuck key
339705 Taper cleaner
339720 Cone cleaner
Package content: Includes clamping nut, does not include wrench
