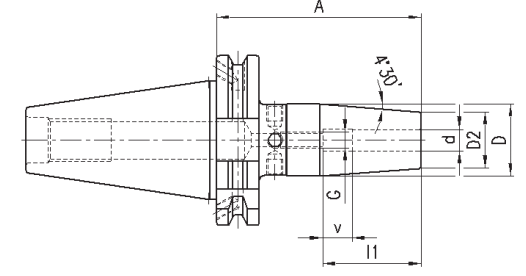

| Mã đặt hàng | Cone | d | A | D | D2 | l1 | V | G |
| mm | mm | mm | mm | mm | mm | |||
| 331062.0100 | SK40 | 6 | 80 | 27 | 21 | 37 | 10 | M5 |
| 331062.0200 | SK40 | 6 | 120 | 27 | 21 | 37 | 10 | M5 |
| 331062.0250 | SK40 | 6 | 130 | 27 | 21 | 37 | 10 | M5 |
| 331062.0300 | SK40 | 8 | 80 | 27 | 21 | 37 | 10 | M6 |
| 331062.0400 | SK40 | 8 | 120 | 27 | 21 | 37 | 10 | M6 |
| 331062.0450 | SK40 | 8 | 130 | 27 | 21 | 37 | 10 | M6 |
| 331062.0500 | SK40 | 10 | 65 | - | 26 | 42 | - | - |
| 331062.0600 | SK40 | 10 | 80 | 32 | 24 | 42 | 10 | M8x1 |
| 331062.0700 | SK40 | 10 | 120 | 32 | 24 | 42 | 10 | M8x1 |
| 331062.0750 | SK40 | 10 | 130 | 32 | 24 | 42 | 10 | M8x1 |
| 331062.0800 | SK40 | 12 | 65 | - | 26 | 48 | - | - |
| 331062.0900 | SK40 | 12 | 80 | 32 | 24 | 48 | 10 | M10x1 |
| 331062.1000 | SK40 | 12 | 120 | 32 | 24 | 48 | 10 | M10x1 |
| 331062.1050 | SK40 | 12 | 130 | 32 | 24 | 48 | 10 | M10x1 |
| 331062.1100 | SK40 | 14 | 80 | 34 | 27 | 48 | 10 | M10x1 |
| 331062.1200 | SK40 | 14 | 120 | 34 | 27 | 48 | 10 | M10x1 |
| 331062.1250 | SK40 | 14 | 130 | 34 | 27 | 48 | 10 | M10x1 |
| 331062.1300 | SK40 | 16 | 65 | - | 29 | 51 | - | - |
| 331062.1400 | SK40 | 16 | 80 | 34 | 27 | 51 | 10 | M12x1 |
| 331062.1500 | SK40 | 16 | 120 | 34 | 27 | 51 | 10 | M12x1 |
| 331062.1550 | SK40 | 16 | 130 | 34 | 27 | 51 | 10 | M12x1 |
| 331062.1600 | SK40 | 18 | 80 | 42 | 33 | 51 | 10 | M12x1 |
| 331062.1700 | SK40 | 18 | 120 | 42 | 33 | 51 | 10 | M12x1 |
| 331062.1750 | SK40 | 18 | 130 | 42 | 33 | 51 | 10 | M12x1 |
| 331062.1800 | SK40 | 20 | 65 | - | 35 | 53 | - | - |
| 331062.1900 | SK40 | 20 | 80 | 42 | 33 | 53 | 10 | M16x1 |
| 331062.2000 | SK40 | 20 | 120 | 42 | 33 | 53 | 10 | M16x1 |
| 331062.2050 | SK40 | 20 | 130 | 42 | 33 | 53 | 10 | M16x1 |
| 331062.2100 | SK40 | 25 | 65 | - | 45 | 59 | - | - |
| 331062.2200 | SK40 | 25 | 100 | 53 | 44 | 59 | 10 | M16x1 |
DIN 69871, Type AD/B, precision-balanced for 25000 rpm.

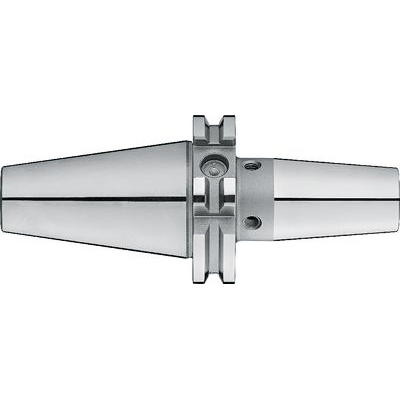

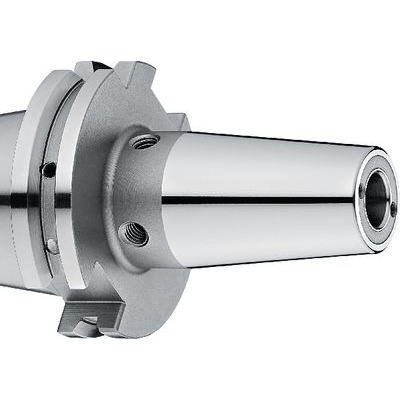

331062 Shrink chuck 4.5° „TOOLFLUSH“ FUTURO
Application: For clamping of tools with cylindrical shank made of carbide (or HSS starting from
6mm) with shank tolerance min. h6. Suitable for induction shrink-fit devices.
For feeding coolant straight to the tool‘s cutting edge.
Version:Made of high-temperature tool steel, with Balluff chip hole and resealable coolant holes.
Package contents: With length adjusting screw (except for extra short version), incl. screws for
sealing the coolant holes
