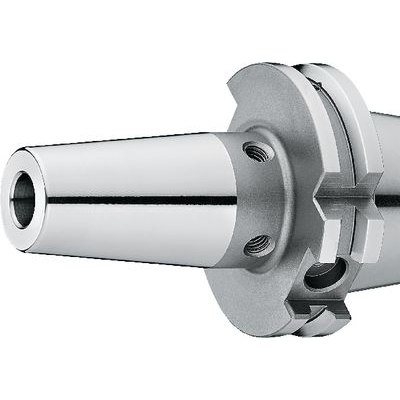

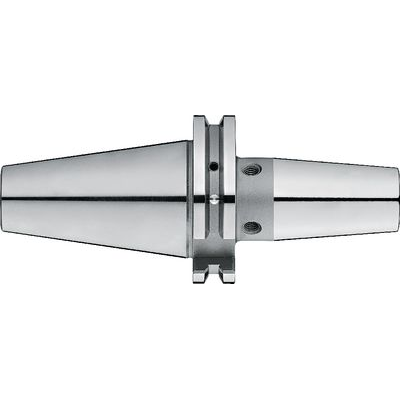

Bầu kẹp gia nhiệt Shrink chuck SK 4.5° kiểu AD/B FUTURO -# 331061

DIN 69871, Type AD/B, precision-balanced for 25000 rpm. Application: For clamping of tools with cylindrical shank made of carbide (or HSS starting from 6mm) with shank tolerance min. h6. Suitable for induction shrink-fit devices. Version: Made of high-temperature tool steel, with Balluff chip hole.

Mã đặt hàng	Độ côn	d	A	D	D2	l1	V	G
		mm	mm	mm	mm	mm	mm
331061.0100	SK40	3	80	17	12	-	-	-
331061.0200	SK40	4	80	17	12	-	-	-
331061.0300	SK40	5	80	17	12	-	-	-
331061.0400	SK40	6	80	27	21	37	10	M5
331061.0500	SK40	6	120	27	21	37	10	M5
331061.0600	SK40	6	130	27	21	37	10	M5
331061.0700	SK40	6	160	27	21	37	10	M5
331061.0800	SK40	6	200	27	21	37	10	M5
331061.0900	SK40	8	80	27	21	37	10	M6
331061.1000	SK40	8	120	27	21	37	10	M6
331061.1100	SK40	8	130	27	21	37	10	M6
331061.1200	SK40	8	160	27	21	37	10	M6
331061.1300	SK40	8	200	27	21	37	10	M6
331061.1400	SK40	10	80	32	24	42	10	M8x1
331061.1500	SK40	10	120	32	24	42	10	M8x1
331061.1600	SK40	10	130	32	24	42	10	M8x1
331061.1700	SK40	10	160	32	24	42	10	M8x1
331061.1800	SK40	10	200	32	24	42	10	M8x1
331061.1900	SK40	12	80	32	24	48	10	M10x1
331061.2000	SK40	12	120	32	24	48	10	M10x1
331061.2100	SK40	12	130	32	24	48	10	M10x1
331061.2200	SK40	12	160	32	24	48	10	M10x1
331061.2300	SK40	12	200	32	24	48	10	M10x1
331061.2400	SK40	14	80	34	27	48	10	M10x1
331061.2500	SK40	14	120	34	27	48	10	M10x1
331061.2600	SK40	14	130	34	27	48	10	M10x1
331061.2700	SK40	14	160	34	27	48	10	M10x1
331061.2800	SK40	14	200	34	27	48	10	M10x1
331061.2900	SK40	16	80	34	27	51	10	M12x1
331061.3000	SK40	16	120	34	27	51	10	M12x1
331061.3100	SK40	16	130	34	27	51	10	M12x1
331061.3200	SK40	16	160	34	27	51	10	M12x1
331061.3300	SK40	16	200	34	27	51	10	M12x1
331061.3400	SK40	18	80	42	33	51	10	M12x1
331061.3500	SK40	18	120	42	33	51	10	M12x1
331061.3600	SK40	18	130	42	33	51	10	M12x1
331061.3700	SK40	18	160	42	33	51	10	M12x1
331061.3800	SK40	18	200	42	33	51	10	M12x1
331061.3900	SK40	20	80	42	33	53	10	M16x1
331061.4000	SK40	20	120	42	33	53	10	M16x1
331061.4100	SK40	20	130	42	33	53	10	M16x1
331061.4200	SK40	20	160	42	33	53	10	M16x1
331061.4300	SK40	20	200	42	33	53	10	M16x1
331061.4400	SK40	25	100	53	44	59	10	M16x1
331061.4500	SK40	25	120	53	44	59	10	M16x1
331061.4600	SK40	25	130	53	44	59	10	M16x1
331061.4700	SK40	25	160	53	44	59	10	M16x1
331061.4800	SK40	25	200	53	44	59	10	M16x1
331061.4900	SK40	32	100	53	44	63	10	M16x1
