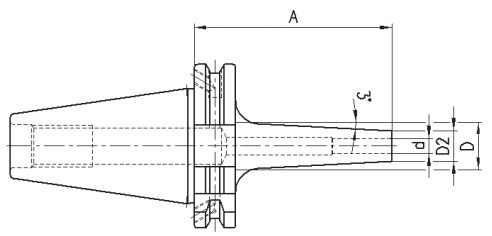

Mã đặt hàng | Cone | d | A | D | D2 | l1 |
mm | mm | mm | mm | mm | ||
331063.0100 | SK40 | 6 | 80 | 19 | 12 | 37 |
331063.0200 | SK40 | 6 | 120 | 23 | 12 | 37 |
331063.0300 | SK40 | 8 | 80 | 21 | 14 | 37 |
331063.0400 | SK40 | 8 | 120 | 25 | 14 | 37 |
331063.0500 | SK40 | 10 | 80 | 23 | 16 | 42 |
331063.0600 | SK40 | 10 | 120 | 27 | 16 | 42 |
331063.0700 | SK40 | 12 | 80 | 25 | 18 | 48 |
331063.0800 | SK40 | 12 | 120 | 29 | 18 | 48 |
DIN 69871, Type AD/B, precision-balanced for 25000 rpm.

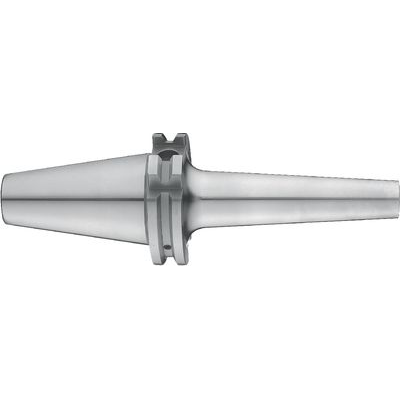

331063 Shrink chuck 3° „SLIM“ FUTURO
Application: For clamping of tools with cylindrical shank made of carbide (or HSS starting from
6mm) with shank tolerance min. h6. Suitable for induction shrink-fit devices.
For reduced obstacle contours especially in toolmaking.
Version:Made of high-temperature tool steel, with Balluff chip hole.
Extra slim version
